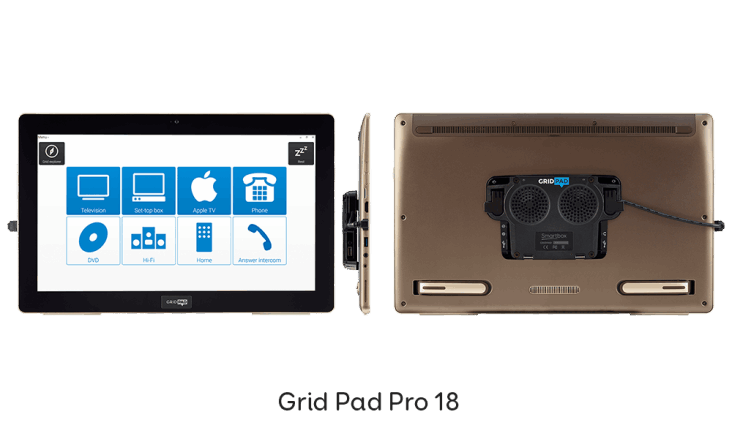

Grid Pad Pro 18

Our Grid Pad Pro devices enable you to communicate and control the world around you, using our powerful Grid 3 software.

The largest Grid Pad Pro is often used in classrooms or mounted at the home or office. It is not suitable for wheelchair mounting. The large screen provides bigger targets that help people with some access difficulties or visual impairment.

The device is built around an 18” tablet with an Intel Quad Core processor and 8GB of RAM. The hard disk is 256GB.

Ports and connectivity

Wi-Fi
Bluetooth
2x USB 2.0, 1x USB 3.0
SD Card slot

Mobirise
Mobirise

Access options

You can access the Grid Pad Pro using the responsive touch screen. We can also provide key guards to suit your specific needs.

There are also two switch ports available and the option for wireless switch input using the Wireless Joycable accessory. The headphone socket will split the sound ready for auditory scanning.

Two spare USB ports allow for other alternative access devices to be used with the Grid Pad Pro, including a head mouse, joystick or Brainfingers.

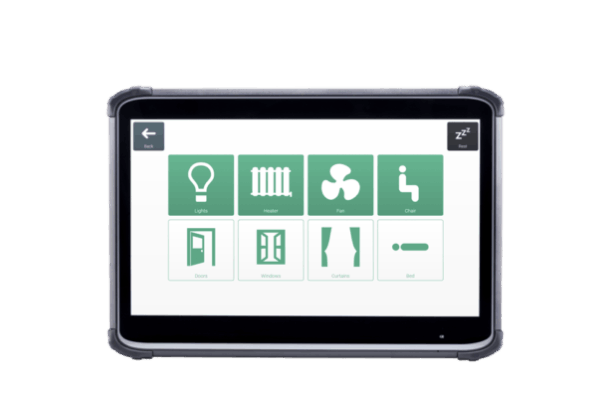

Servus Environment control

Inbuilt infrared technology replaces the remote controls that normally operate TV, music centres and other similar systems. Also included is radio control that can operate sockets, alarms and relays.

Mobirise

Powered by the Grid

The revolutionary Grid 3 is included with every Grid Pad providing a complete AAC solution for anyone, from beginners to experts. Fully featured with Symbol and Text communication, social media, in built browser, environment control, SMS and more.

Mobirise
Innovative sound
All Grid Pad Pro devices come with integrated high quality amplified sound, so there is no need for additional speakers.
Flexible mounting
The portable Grid Pad Pro communication aids include integrated stands to position the devices at the optimum angle for table top use. For wheelchair users, or those who prefer a floor stand, the mounting plate is also compatible with REHAdapt and Daessy systems.
Please request the mounted version when ordering.
Dedicated or standard set-up
For people that only want to use the Grid Pad as an AAC device, we can supply it in dedicated mode. At no additional cost we restrict the device so that only our Grid software can be used.
Please request when ordering.

Specification
Operating system Windows 10
Software Grid 3
Processor Intel® Pentium® processor J3710  1.6 GHz – 2.6 GHz Burst
Memory 8GB
Hard drive 256GB SSD
Graphics card Intel® HD Graphics
Dimensions (mm) 440 x 325 x 50
Dimensions (inches) 17.3 x 12.8 x 2
Weight (kg) 2.75
Battery life Up to 4hrs 40 mins
Tablet camera 2MP front
Screen 17.3″ 1080 full HD display
Eye gaze camera None
Access Touchscreen, switch, USB input
Connectivity Wi-fi, bluetooth
Ports 2 x USB 2.0, Speaker Out, USB 3.0, HDMI, Micro SD, Auditory Feedback Port
Buttons Power, volume
Switch access 2 x 3.5mm jacks, radio switch (additional extra)
Amplified speaker 2 x built-in high quality speakers
Mounting  options Rehadapt and Daessy
Environment control Servus inside – Gewa, Eldat or Z-wave, radio switch receiver

* Battery life on Grid Pad devices can be extended for up to 12 hours with our external battery pack.

Product code: AAC0035
