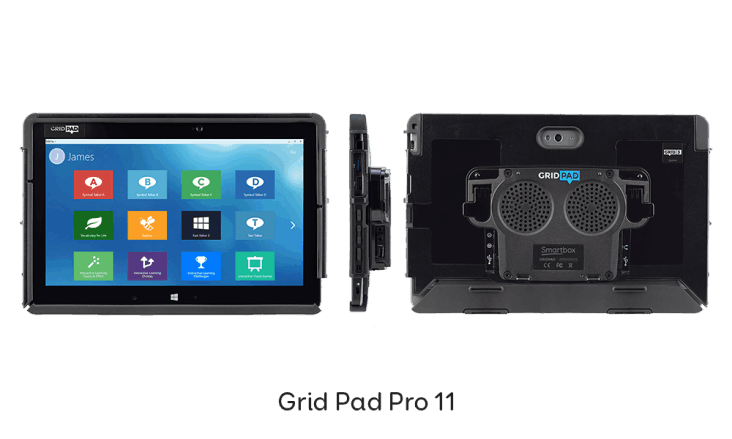

Grid Pad Pro 11

Grid Pad Pro 11

Our Grid Pad Pro devices enable you to communicate and control the world around you, using our powerful Grid 3 software.

The smallest of our Grid Pad Pro devices is built around a high spec tablet, running Windows 10 operating system. Inside the tablet is an Intel Core 1.9 GHz processor, 4GB of memory and 120 GB hard disk.

The Grid Pad Pro 11” is enclosed by a rugged case that helps protect the devices against knocks and bumps. You can use the device all-day with the 6-hour battery life.
Ports and connectivity

Wi-Fi
Bluetooth
2x USB
Mini HDMI

Access options

You can access the Grid Pad Pro using the responsive touch screen. We can also provide key guards to suit your specific needs.

There are also two switch ports available and the option for wireless switch input using the Wireless Joycable accessory. The headphone socket will split the sound ready for auditory scanning.

Two spare USB ports allow for other alternative access devices to be used with the Grid Pad Pro, including a head mouse, joystick or Brainfingers.

Servus Environment control

Inbuilt infrared technology replaces the remote controls that normally operate TV, music centres and other similar systems. Also included is radio control that can operate sockets, alarms and relays.

Powered by the Grid

The revolutionary Grid 3 is included with every Grid Pad providing a complete AAC solution for anyone, from beginners to experts. Fully featured with Symbol and Text communication, social media, in built browser, environment control, SMS and more.

Innovative sound

All Grid Pad Pro devices come with integrated high quality amplified sound, so there is no need for additional speakers.

Flexible mounting

The portable Grid Pad Pro communication aids include integrated stands to position the devices at the optimum angle for table top use. For wheelchair users, or those who prefer a floor stand, the mounting plate is also compatible with REHAdapt and Daessy systems.

Please request the mounted version when ordering.

Dedicated or standard set-up

For people that only want to use the Grid Pad as an AAC device, we can supply it in dedicated mode. At no additional cost we restrict the device so that only our Grid software can be used.

Please request when ordering.

Specification

Operating system Windows 10

Software Grid 3

Processor Intel® Core™ processor m5-6Y54 1 GHz – 2.7 GHz Burst

Memory 4GB

Hard drive 128GB SSD

Graphics card Intel® HD Graphics

Dimensions (mm) 310 x 200 x 50

Dimensions (inches) 12.2 x 7.8 x 2

Weight (kg) 1.8

Battery life Up to 6hrs*

Tablet camera 2MP front, 5MP rear

Screen 11.6″ 1080 HD display

Eye gaze camera None

Access Touchscreen, switch, USB input

Connectivity Wi-fi, bluetooth

Ports 2 x USB2.0, Speaker Out, Micro SD, Micro HDMI, Auditory Feedback Port

Buttons Power, home, volume

Switch access 2 x 3.5mm jacks, radio switch (additional extra)

Amplified speaker 2 x built-in high quality speakers

Case Integrated Tough Case

Mounting options Rehadapt, Daessy and built in Tablet Stand

Environment control Servus inside – Gewa, Eldat or Z-wave, radio switch receiver

* Battery life on Grid Pad devices can be extended for up to 12 hours with our external battery pack.

Product code: AAC0034
